VGA to DVI-D Converter. 1080p. 1920x1200

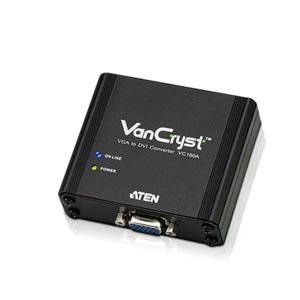

The VC160A is a VGA-to-DVI Converter that lets you view VGA source data in DVI output display.It uses dual power sources – from the VGA port and a power adapter. The VC160A is compact, flexible and convenient to install – with no software required. It supports a wide range of resolutions for a more enjoyable quality video experience.
- Converts analog VGA signals to DVI output
- Multiplatform support – Windows and Mac
- No software required – eliminates incompatibility and installation issues
- Compact and lightweight
- Supports dual power sources – VGA port or power adapter (in case the VGA port cannot provide sufficient power)
- Superior video quality – up to 1080P (HDTV) or 1920x1200 (PC)
- Automatically detects video input signals (indicated by LED)
- Smart Video Display – Image quality is optimized based on the available resolution of the output device
- Screen Position Button – screen position can be adjusted and restored for each output resolution
| Connectors |
Video In |
1 x HDB-15 Female (Blue) |
| Video Out |
1 x DVI-D Female (White) |
| Power |
1 x DC Jack |
| LEDs |
Power |
1 (Green) |
| Video Sync |
1 (Blue) |
| Switches |
Direction Adjustment |
4 x Semi-recessed Pushbuttons |
| Memory |
1 x Semi-recessed Pushbutton |
| Video |
Up to 1080P (HDTV) or 1920 x
1200 @ 60 Hz (PC) |
| Power Consumption |
DC 5.3V, 2.8W |
| Environment |
Operating Temp. |
0 – 50°C |
| Storage Temp. |
–20 – 60°C |
| Humidity |
0 – 80% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.15 kg |
Dimensions
( L x W x H ) |
7.90 x 7.81 x 2.43 cm |
* The pictures and specifications all from Aten company website.
