AT&T MODEM 100MBPS

The AirCard 313U, also known as the AT&T USBConnect Momentum 4G,  Rogers LTE Rocket Stick,or Bell 4G LTE Sierra Wireless 313U Turbo Stick is one of Sierra Wireless’s first in a family of USB modems for LTE networks offering download speeds of up to 100 Mbps and upload speeds  up to 50 Mbps. In addition to LTE, both modems support Dual Carrier HSPA+, earlier versions of HSPA+ and its predecessors, UMTS, GSM, and GPRS. Its design, which is based on the AirCard 312U USB modem that launched in August 2010 for Dual-Carrier HSPA+ networks, is thinner and more user-friendlythan competitive LTE products currently available, with a rotating USB hinge that works with the widest variety of USB port placements.

Features:

- Rotating USB hinge designed with ultimate durability

- Plug and play installation with the Sierra Wireless Setup Wizard - no CD required

- Global Roaming on LTE networks and supports DC-HSPA+, HSPA+, HSPA, UMTS,   EDGE, GPRS

Benefits:

- Access the fastest network available

- Robust USB design makes it easy for you to work in tight spaces

- At first insertion, be surfing in less than 60 seconds*

- Easy connectivity with AirCard Watcher Software

- Proven reliability and performance from Sierra Wireless

* Windows 7 PCs.

* Network dependent

Technical Details:

TECHNOLOGY

USB Device (USB Port)

LTE Category 3 (100 Mbps downlink, 50 Mbps uplink)

DC-HSPA+ Category 24 (42 Mbps downlink)

HSUPA Category 6 (5.76 Mbps uplink)

EDGE MS Class 12/GPRS MS Class 10

microSD™/SDHC support (up to 32 GB)

GPS

BANDS

LTE: 700 MHz/AWS (1700/2100 MHz)

UMTS WCDMA: 850/1900/2100 MHz

GSM/GPRS/EDGE: 850/900/1800/1900 MHz

GPS: 1575 MHz

ANTENNA DIVERSITY SUPPORT

2x2 MIMO antenna for LTE

Type 3i advanced receivers on all UMTS WCDMA bands

ENVIRONMENTAL

Operating temperature: 0 to 35° Celsius

Storage temperature: -40 to 85° Celsius

RoHs compliant

STANDARDS/APPROVALS (PENDING)

FCC, Microsoft WHQL, IC

Other carrier specific approvals

DIMENSIONS

50 mm (L) x 64 mm (W) x 11 mm (H)

Volume: 34 cc

Weight: 55 g

PERSONAL COMPUTER REQUIREMENTS

USB port (2.0 recommended)

Available disk space: 150 MB

OS SUPPORT (DRIVERS AND SDK)

Windows® 7, Vista®, or XP Service Pack 3 (32 and 64 bit)

Mac OS® 10.5 or 10.6 (Snow Leopard)

Ubuntu Linux 9.04

APPLICATION SOFTWARE SUPPORT

Windows 7 Mobile BroadbandWindows 7 Device Stage

Mac OS WWAN Manager

Sierra Wireless Setup Wizard

Sierra Wireless AirCard Watcher™

Sierra Wireless AirCard Enterprise Watcher

Sierra Wireless AirCard Updates

Sierra Wireless AirCard Enterprise Support Tools

Other carrier specific connection manager software support

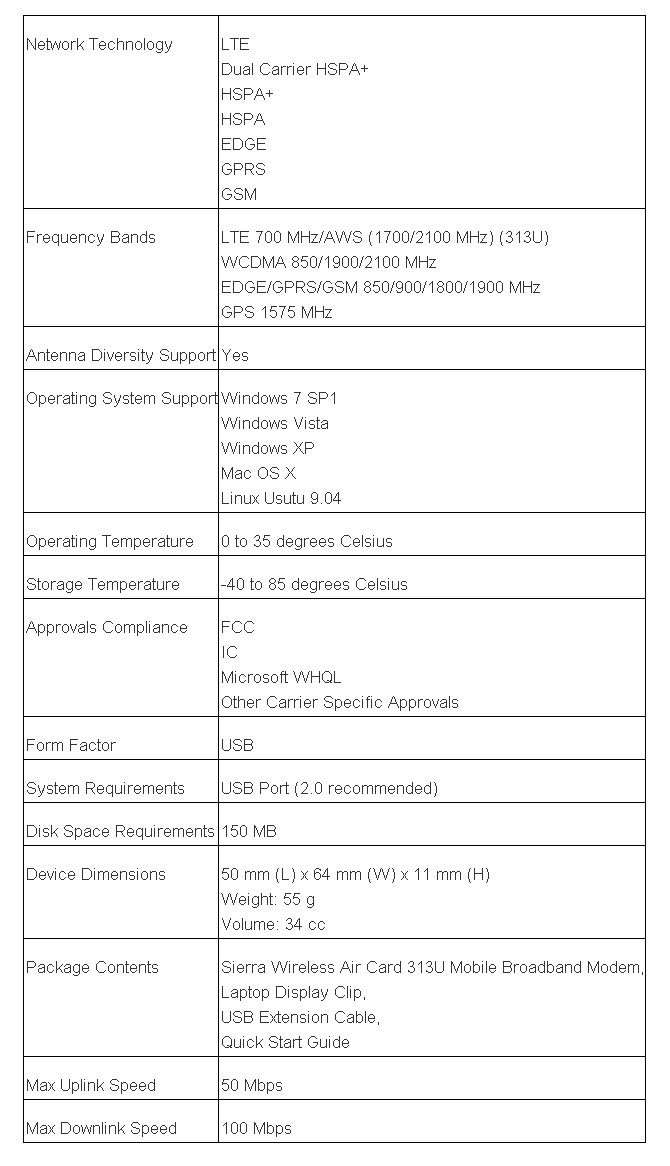

 Technical Spec
